的主要用途与简洁：/Purpose and introduction

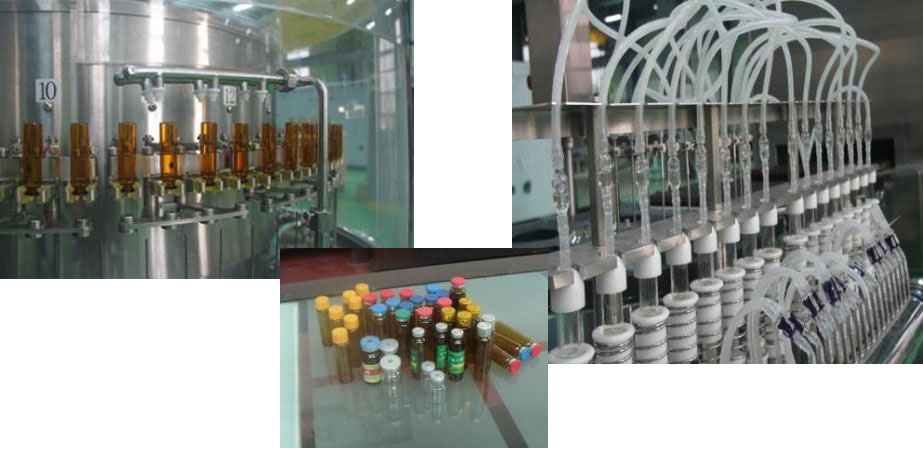

服食药液洗烘灌轧对接线由立柱式超音波波洗瓶机、铁路隧道式热气 循环系统过滤除菌烘干功能箱、服食药液灌装线设备轧盖机等组成的，適合于 5-30ml 等各种规 格服食药液瓶的生孩子。可来完成对产品生孩子中安瓿瓶淋水、超音波波擦洗、冲水、充 气、烘干功能过滤除菌、制冷、灌装线设备、轧盖等生产工艺关键步骤的对接正常运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

基本特征:/characteristic

◆洗瓶机选用机械化手夹瓶，支持很多种年纪的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶采取水蒸汽喷针循环往复追踪进到这一领域手段，除垢性能好好，业绩清洁能源。并存在针架防震动系统设计，改善喷针进到这一领域罐子的精准的度，避免断针的情况情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整雾气滤油器、喷针全经济独立连在一起，防止出现了交叉式被污染的，包含GMP规范标准特殊要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺杆式前加裝抗震块，有保护英文挤出机螺杆式，增多碎瓶能力Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采用了一体化进出口微信同步带，连入拨块推送内服液，自动运行稳定性高靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱按照红外线进行加散热片，不锈钢板进行加散热片两层进行供暖温度表匀称性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机能选配卫浴陶瓷泵、不绣钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖模块。Pieces filling without bottle filling, no bottle no rolling function.◆整线主要包括PLC总调控、变頻器、手触屏调控工艺，运营增强能信。手触屏可展示各pc单机的运营阶段，各调控点的压力、压力、风速、摄氏度等展示，各旋转开关阶段和设备故障率问题展示，设备故障率问题自我价值检验和设备故障率问题具体分析及检测手段。使一个生產全过程完成自行化调控，联线有着三机自动化控制稳定仪器，可以保障生產均衡教育能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.据客人的想要，还可供加装音响：According to the needs of customers, but also available for selection:◆欧姆龙、斯耐德、三菱PLC、台达等该品牌把控好操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负荷、水温表及超声心动图波标准、污物水粒子、风速等级百度在线验测、警报、记录卡、打印图片设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌消毒器平台。Mixer ORABS, CRABS, aseptic isolator system.

技艺因素：technical parameters

应用型号规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线要求Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
