应用场景与简单介绍/ Brief Introduction：

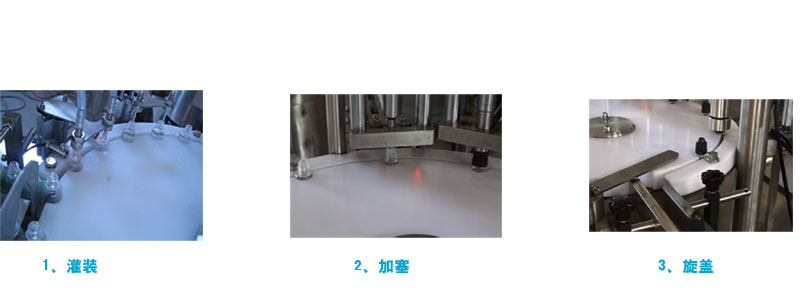

本生育线由全手动理瓶机、滚轴式洗瓶机、高压蒸汽灭菌潮湿机、眼灵药装灌旋盖机、柜式标贴纸机柜成，可顺利完成理瓶、水、气的洗掉、真空干燥及臭氧老化清洗、装灌、加塞、旋盖、标贴纸等繁琐流程，其主要施用在眼灵药极其他小用药量溶剂的联线生育，也可单机游戏独力施用。截然按照GMP符合要求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

优势特点/Characteristic：

滤油机组设定构造合理的，运营稳定可靠、包装可靠性强，精密程度高，具全球同行公司业先进性质量。彻底满足GMP细则。     眼蓝药水分装旋盖机已经是我我司的第二代设备，人与机器操作界面把控好，肠蠕动泵分装，由高压气吸物理手替代气式更加好的打塞，可以保障了稳界定高性和达标率。利用恒扭距旋盖，有着无瓶不分装、无塞不上盖，无瓶无塞可自然停止时的模块。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技术应用参数设置/technical parameters：

适合型号/Bottle size	10-20ml
种植效果/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用水的有压力/ Hydraulic Pressure Mpa	0.3Mpa
用纯净发电量 /water consumption	0.5 m3/h
洁净并用减小气负压 /Clean compressed air pressure	0.6-0.8Mpa
无尘室减小热空气需求量/Clean compressed air consumption	300 L/min
开关电源/Voltage	380V/50Hz
工作效率/Power	5.5 kw
制造线总长/Dimension	11000*1500*1900mm
