不同的用途与详细介绍/Brief Introduction：

皮下接种污水机械皮下接种污水是纯化水经减压蒸馏所获资金，杆菌内黑色素等标准均完全符合我国的药典皮下接种污水项下的规定的水质量想要，用做为食物化工制造业企业中分类一直皮下接种入我们身体内口服药的相转移催化剂。皮下接种污水机械通常包扩皮下接种污水提纯、循坏儲存、静态分发和方法保持等通常功能模块。

基本特征/Characteristic：

◆全定时的操控策略，以免职工误的操控创造的生产销售伤害；Automatic operation mode, to prevent losses of wrong operation of production;◆机件通过316L的材质；Components in 316L texture◆带PLC抑制的CIP成品；CIP products with PLC control◆记下与永久保存冲洗期间的性能参数与步驟；Record and save the parameters of the cleaning process and steps◆做到GMP请求的可追溯性与顾忌明性； Meet GMP requirements traceability and accountability◆一体机化构思有效节省成本办公空间；Integrated design can effectively save space◆达成加工和清潔的加快修改；Implement production and clean fast switching◆巴氏杀菌室内消毒消毒，擦拭更撤底；Babbitt disinfection sterilization, cleaning more thoroughly◆多效减压蒸馏机：整个设备导压管相连所有的主要采用了手动激光焊接，按公共卫生级标，调节阀主要采用了快卡相连，杜决了接种用热水的分次影响；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯压缩空气發生器：PLC人机对战使用操控接口，可0-100%自主调接至要的产品的生产数量符合要求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无墙角方案：注射液体拿水设备无尘滤油器充分考虑GMP3D必须，胶垫为PTPE/EPDM，膈膜阀水准装有时为四十五度，巡环供水管装有设为0.5的相对高度，设底点为产生点,并且以湍液阶段巡环流动性的储存室和输送机设备，防范微菌物的大量滋生；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完好的文书整体：①文书适合GMP标准；②控制系统全自动化把握整体可适合GAMP5；③3Q文书达到药业有限公司厂查证的需要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆选配高使用性能定频泵用为气力输送机和分发注塑纯净水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板板换器，在纯化水长用时再循环期间中起到了待冷却帮助。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆针剂冲水贮罐先按照立柱式贮罐二离心式贮罐，能够满足传输泵液位条件，科学研究设制罐里水流量制止动物膜导致。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆选取80℃上述保温层循环系统化装修设计，避免 用纯净水系统化微海洋生物滋长和水污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆有导电连接调温（水蒸汽调温）吸过虑器。Equipped with electric heating, steam heating) breathing filter◆罐底溢水口镇加设椎型侧板以变大采面上，以免涡流效应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐连接所采用惰性气体养护，保护医药化工用水的存储及分配原则系统软件负压，放到外链分流造成的污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆生物制药需要用水输送管泵主要采用316L铝合金制造出（浸水这部分），电打磨并钝化进行处理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

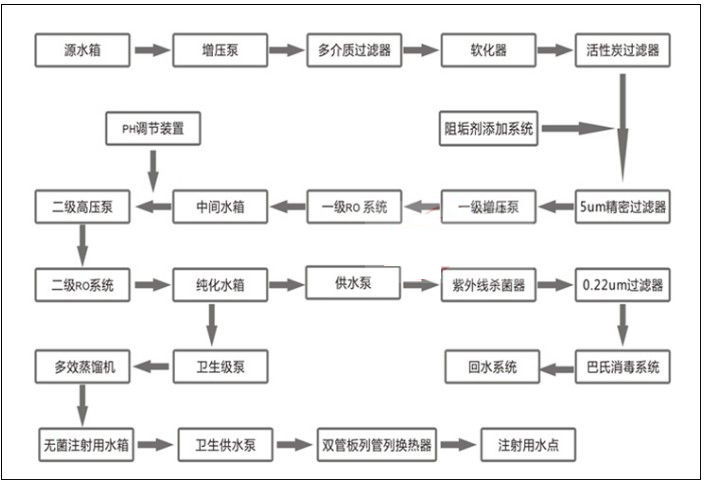

三、系統技术程序图
